EKF Diagnostics Hemo Control Analyser

EKF Diagnostics Hemo Control Analyser

SKU: HEMO-C

The Hemo Control Hemoglobin and Hematocrit Analyser from EKF Diagnostics represents an upgrade of the well established Hemo Control system and provides quantitative and lab-quality haemoglobin results from 25 seconds.

EKF Diagnostics Hemo Control Photometer uses the most established photometric azide methemoglobin method ensuring reliable results with a high precision (CV <2%).

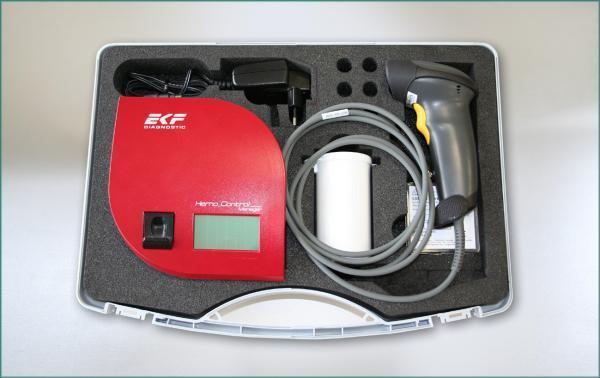

This Hemo Control photometer comes complete with carry case and user manual, power supply with adaptor, control cuvette, 2 x cleaners and wall poster.

Hemo Control is used in blood banks, hospitals and doctors’ offices for routine screening for anaemia. The Hemo Control analyzer features a bi-directional interface using a public standard protocol that allows direct integration with third-party software.

£878.94£1,361.99

Clear

Not Quite Right?

Check out the brand page for more products from this manufacturer

Hemo Control Analyser

EKF Diagnostics’ Hemo Control Hemoglobin Analyser is a Point-of-Care analyser. It provides quantitative and lab-quality haemoglobin results from 25 seconds.

Hemo Control analyser uses the most established photometric azide methemoglobin method ensuring reliable results with a high precision (CV <2%).

The analyser is used in blood banks, hospitals as well as doctors’ offices to screen for anaemia. It features backlit screen, a soft-load cuvette holder and integrated rechargeable battery. Thus making it the perfect analyser for stationary use and mobile settings. In addition to providing haemoglobin measurement, Hemo Control also calculates hematocrit.

Simple, accurate and reliable hemoglobin and hematocrit test

The Hemo Control hemoglobin analyser features a bi-directional interface using a public standard protocol. This protocol allows direct integration with third-party software.

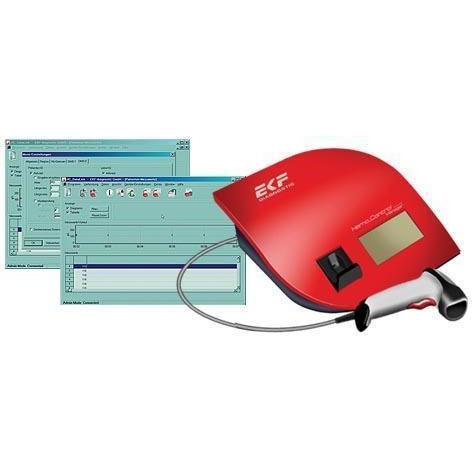

Advanced data management functions are available with the Hemo Control Manager version of the device. The basic Hemo Control device can be upgraded with data management functions at a later point of time (a unique market feature). The ‘Add Pack’ Data management is an ideal future option for customers who plan for an implementation into a hospital or lab information system.

EKF’s Hemo Connect and Hemo Connect Light software remain available for customers who wish to use data management and data export functions, independent from LIS integration.

Used by Teesside University.

Additional information

Options

Hemo Control Photometer, Photometer with case, Hemo Control Manager, Manager with Case

Measuring range

0-25.6 g/dL, 0-15.9 mmol/L

Imprecision

CV <2 %

Linearity

0-20 g/dL: ±0.3 g/dL; >20 g/dL: ±0.7 g/dL

Shipping/Delivery Restrictions

Can only be shipped to UK and Ireland

Features

  • User-friendly features minimise training time
  • Step by step instructions on the screen
  • Backlit touchscreen
  • User selectable language menu
  • Soft-load cuvette holder minimizes risk of contamination
  • Operating ambient temperature of 15 °C – 40 °C
  • Photometric azide methemoglobin method
  • Measuring range: 0-25.6 g/dL; 0-15.9 mmol/L
  • Imprecision: CV <2 %
  • Linearity: 0-20 g/dL: ±0.3 g/dL; >20 g/dL: ±0.7 g/dL
  • Calibrated to NCCLS reference method
  • Control cuvette included

  • Haemoglobin and hematocrit results from one sample available after 25-60 seconds (depending on the concentration)
  • Venous, arterial or capillary blood
  • Sample volume only 8 µl
  • n.x.t. shape microcuvette minimises air bubbles
  • Compact in size and weighing just 700g
  • No maintenance required. Auto self-test
  • Integrated rechargeable battery (100 hours)
  • Bi-directional interface using LIS2-A2 communication standard
  • Stores 4,000 patient results
  • Connect to PC via USB connector cable
  • Basic device upgradeable with data management (DM) functions: Barcode identification of patients, operators, cuvette LOT and control materials, quality control lockout function, additionally stores 500QC results
  • Hemo Control Manager: integrated Bluetooth technology, DM functions supported from delivery



Resources

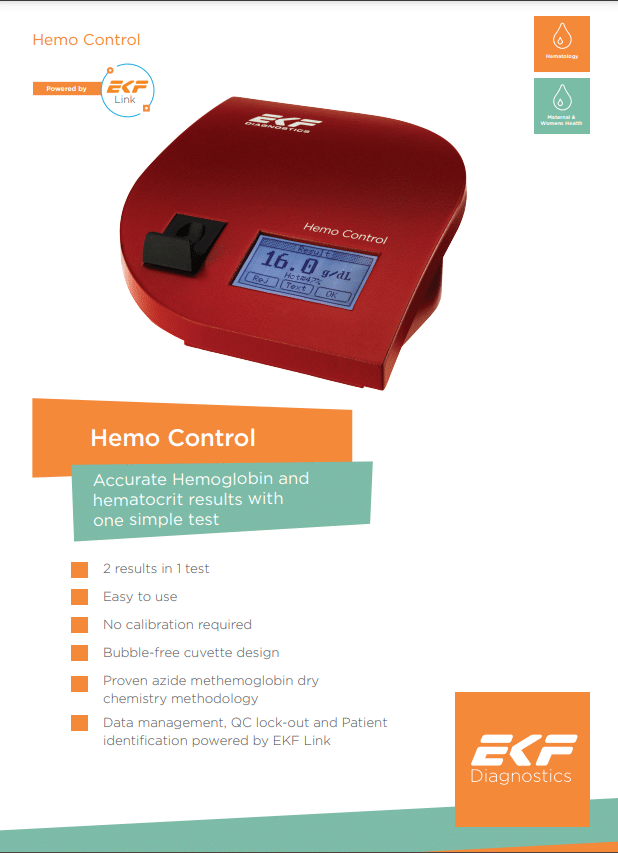

Click the image below to download the full product sheet:
